32MM Gauge Only
£135 (including P&P within the UK - for international shipping contact us here)

Released in the last few hours of 2024.

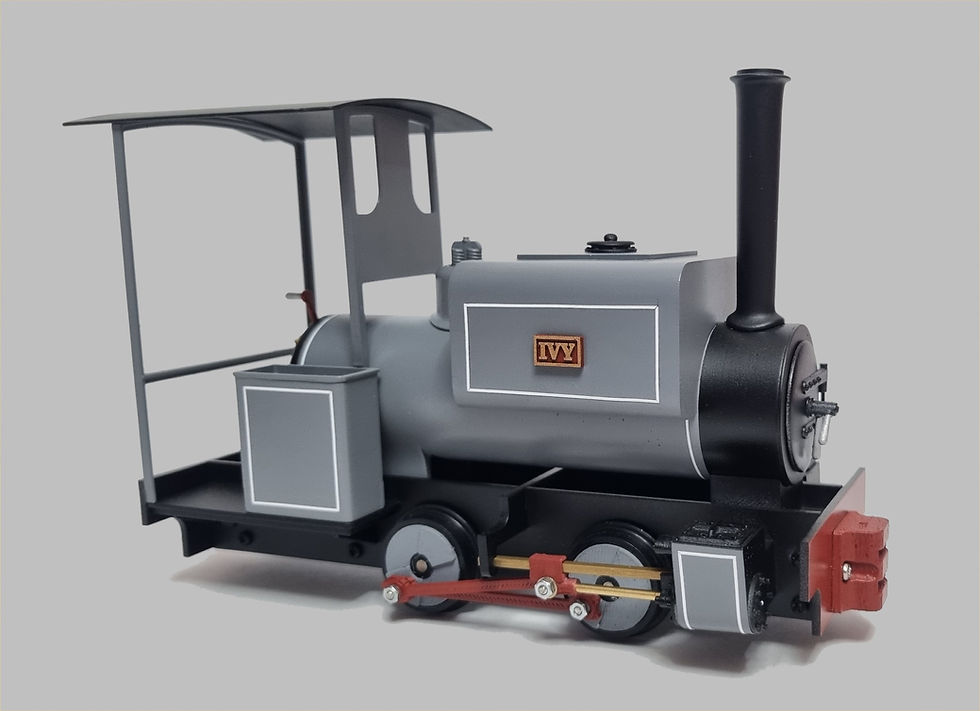

IVY is a 16mm scale model inspired by the Kerr Stuart Wren Class saddle tanks.

Our 16mm kit is built from 3D printed filament & resin parts, and laser-cut acrylic and utilises our new adaption to the Binnie Engineering 24mm wheel, creating an effective driving wheelset.
It comes complete with a 3-6volt motor, nylon worm gears, Binnie Engineering 24mm wheels on 1/8" stainless steel axles, and all necessary metal stock, nuts, screws & washers required to build the model in the photos.
The kit also includes a micro slide switch (with corresponding holes in the underside of the saddle tank) and a selection of resin-printed detail parts.

We do recommend access to a small "bench vice" to build this kit.

Building instructions are included with the kit.

Although not for beginners, the kit is reasonably easy to construct and requires basic tools, glue, paint and batteries to complete.
There is adequate room in the boiler & tank for four “AAA” batteries or a 3.7V Lipo battery.

Batteries or any electrics (except micro switch) are not included in the kit.

Length (over buffers) - 150mm
Width (across cylinders) - 73mm
Height (from railhead to chimney top) - 117mm
Rigid Wheelbase – 48mm

Display model colours -
Halfords - Grey Primer
Halfords - Red Oxide Primer
Halfords - Matt Black
